BFO Select

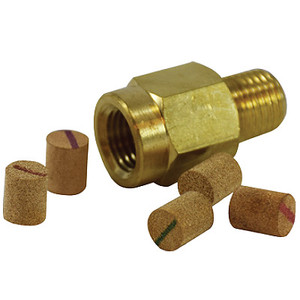

1/4 in. Pressure Snubber, Porosity: 10 um 9000 PSI, Brass Body, Includes: 5 different porosity elements per package
- SKU:
- BFO28-350
- Availability:
- Available
- Weight:
- 0.01 LBS
Description
| Catalog & Technical Specifications |
• Applications: Protect pressure instruments from sudden pressure surges and fluctuations providing more accurate gauge readings • Construction: Solid brass housing with porous bronze element • Can be used for mini in-line filters • 5 different porosity elements per package,
allows each user to adjust snubbing capacity for the specific application
• Materials: Body: Brass
• Element: Sintered Bronze
• Max Operating Pressure: 9000PSI
• Temperature: 35° to 300°F
Recommended Element Porosity Rating (5 Different Porosity Elements Per Package)
Rating Color Recommended Application
• 40 um None Viscous Fluids (over 500 ssu)
• 30 um Black Med. Type Oils (225 to 500 ssu)
• 25 um Brown Water & LT. Oils (30 to 25 ssu)
• 20 um Green Low Viscosity Fluids Fluids (under 30 ssu)
• 10 um Red Air and Other Gases
• 5 um Purple Air and Other Gases
Additional Information
Size (inches): |
.250 (1/4") |
Product Type: |
Pressure Snubber |
Category Type: |
Pneumatics |
Weight (lbs): |
0.01 |
Additional: |
From Import |
