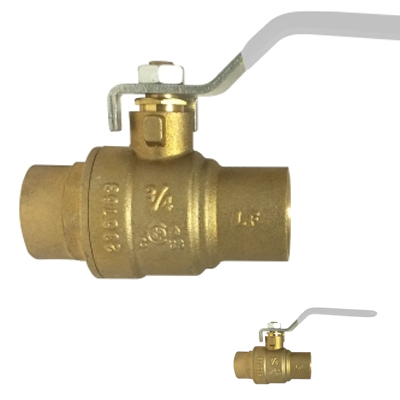

Name: 1 in. Sweat x Sweat (SWT) - Full Port 600 WOG - Lead Free Brass Ball Valve AB-1953 (with Approvals)
Brand: BFO Select
SKU: BFO943614LF
Price: 39.22 USD
Availability: InStock

1 in. Sweat x Sweat (SWT) - Full Port 600 WOG - Lead Free Brass Ball Valve AB-1953 (with Approvals)

(No reviews yet) Write a Review

SKU:

BFO943614LF

Availability:

Available

Weight:

1.01 LBS

Description
Additional Information
0 Reviews
Reviews

Description

View Sizing & Specifications

LEAD FREE BALL VALVE BRASS 600PSI FULL PORT with APPROVALS: FM cUPC, NSF/ ANSI 61 & 372

Leadfree Brass Ball Valve - Sweat x Sweat
Lead free and dezincification resistant (DZR) material 1/4"-1" Lead Free Brass Ball
Size 1-1/4" thru 4" with Stainless steel ball
IAMPO listed to cUPC, NSF/ ANSI 61 & 372, IGC 157
CSA - 1/4" thru 2": ANSI Z21.15/ CSA 9.1 for 1/2 psig valves
ASME B16.44, CGA CR91-002 for 2 & 5 psig valves;
CAN/ CGA-3.16, ASME B16.33 (1/2"-2") for 125 psig valves
FM - for size 1/4" thru 2"
ISO 9002 Manufacture
Suitable for full range of liquids and gases
Minimal pressure drop due to large full size ports
Bottom loaded, pressure retaining stem
Pressure rated for 1/4"-2" at 600psi (42 bars) and 2-1/2"-4" at 400 psi WOG (non-shock) and 150 WSP (10.34 bars) saturated steam.

Virgin PTFE stem packing seal, thrust washer and seats
White vinyl insulator on heavy duty plated carbon steel handles
Fast 1/4 turn open or close operation
Low operating torque
Adjustable stem packing gland
Maximum operating temperature: 3020F (1500 C)
Minimum operating temperature: -220F (-300C)
Each valve individually tested
Forged Brass - for more strength
Threaded ends to ANSI B1.20.1
Hard chromium plated solid ball
Bottom entry, blow-out proof stem
Made in China

View AllClose

Additional Information

Size (inches):	1.25 (1-1/4")
Material Type:	Lead Free Brass
Product Type:	Ball Valve
Category Type:	Industrial Valves
End Connection:	SWT x SWT
Port Type:	Full Port
WOG Rating (psi):	600
Weight (lbs):	1.01
Additional:	From Import
