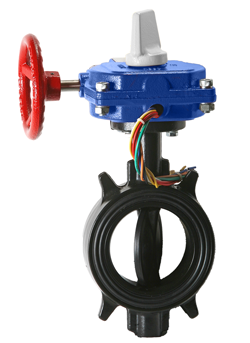

HPW1C Ductile Wafer 300 PSI Butterfly Valves
View Drawing & Technical/Material Specifications
- Normally Closed (Supervised Closed) Switch
- Connections: Wafer Ends (ANSI Class 125)
- Sizes: 2-1/2, 3, 4, 6, 8
- Approvals: UL, ULC, FM, and California State Fire Marshal
- Max. Working Pressure: 300 PSI
- Max. Test Pressure: 600 PSI
- Max. Working Temperature: 250°F (120°C)
- Application: Indoor and Outdoor Use
- Double-Seal Disc; Resilient EPDM Coating
- Factory-Installed Supervisory Tamper Switch Assembly
-
DescriptionSKUPrice
-
BFOHPW1C250$666.43
-
BFOHPW1C300$698.04
-
BFOHPW1C400$868.67
-
BFOHPW1C600$1,130.00
-
BFOHPW1C800$1,431.14
