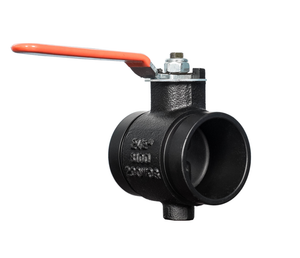

2-1/2 in. Ductile Iron Grooved Butterfly Valve Lever Handle 8100 Series 200 PSI

View Drawing & Technical/Material Specifications

The 8100LG low-profile butterfly valve features a rugged ductile iron body with grooved ends (AWWA C606-14). The ductile iron disc is encapsulated in EPDM rubber which provides a double seal interface with the stem.  EPDM O-Rings are used integrally on the stem to assure a leak-free performance.  The lever handle is mounted with a 3-position plate providing lock-out holes at Zero, 45 and 90 degrees. The valve is rated bubble-tight at full pressure in all sizes, 2” – 8”to 300 psi: max test pressure to 450 psi.

• Connections:Grooved Ends (AWWA C606)
• Sizes: 2", 2-1/2", 3", 4", 6", 8"
• Max. Working Pressure:200 PSI
• Max. Test Pressure:350 PSI
• Max. Working Temperature: 250°F (120°C)
• Application: Indoor and Outdoor Use
