Anvil

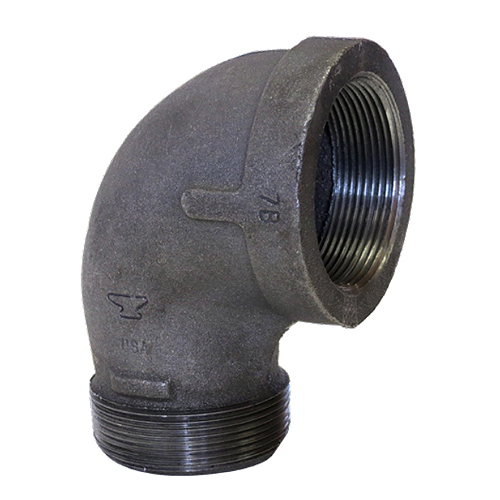

3/4 in. NPT Threaded - 90 Degree Street Elbow - DOMESTIC - 150# Black Malleable Iron Pipe Fitting - UL/FM
(No reviews yet)
Write a Review
- SKU:
- BF310016407
- MPN:
- 310016407
- Availability:
- Available
- Weight:
- 0.41 LBS
Description
Specifications / Applications:
FIG 1101 1102 90 Degree Elbows - ANVIL Fittings - DOMESTIC
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
Every fitting is manufactured and tested to meet Anvil’s strict quality standards.
All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39.
All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar)
| Application: | Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential |
| Pipe Fitting Material: | Malleable Iron |
| Specific Fitting Shape: | 90 Degree Elbow - Straight |
| Fitting Schedule/Class: | Class 150 |
| Fitting Connection Type: | FNPT x MNPT (Female NPT x Male NPT) First size denotes female end. |
| Standards: | UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1 |
| Pipe Fitting Schedule/Pressure Class: | Class 150 |
| Saturated Steam Pressure: | 150 psi @ 350 Degrees F |
| Temp. Range: | -20 Degrees to 350 Degrees F |
| Maximum Operating Pressure: | 300 psi @ 150 Degrees F |
| Includes Pre-Applied Thread Sealant: | No |
| Finish: | Black |
| For Use with Pipe Schedule: | 40 |
| For Use with Flanges/Fittings: | Class 150 |
| NSF: | NSF 61 CERTIFIED |
