Anvil

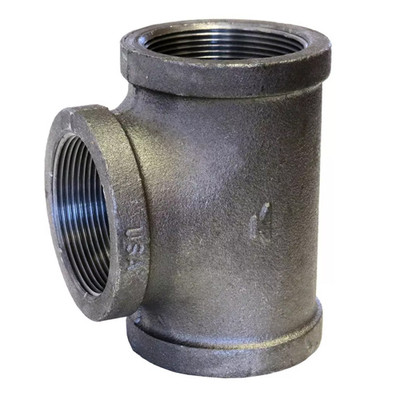

6 in. NPT Threaded - Straight Tee - DOMESTIC - 150# Black Malleable Iron Pipe Fitting - UL/FM
- SKU:
- BF0310032008
- MPN:
- 031032008
- Availability:
- Available
- Weight:
- 25.50 LBS
Description
Specifications / Applications:
FIG 1105 1105 Straight Tees
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
Every fitting is manufactured and tested to meet Anvil’s strict quality standards.
All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39.
All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar)
Application: | Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential, Fire Protection |
Pipe Fitting Material: | Malleable Iron |
Specific Fitting Shape: | Tee - Straight (All NPT ends are female and the same size) |
Fitting Schedule/Class: | Class 150 |
Fitting Connection Type: | Female NPT x Female NPT x Female NPT (All NPT ends are the same size) |
Standards: | UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1 |
Pipe Fitting Schedule/Pressure Class: | Class 150 |
Saturated Steam Pressure: | 150 psi @ 350 Degrees F |
Temp. Range: | -20 Degrees to 350 Degrees F |
Maximum Operating Pressure: | 300 psi @ 150 Degrees F |
Includes Pre-Applied Thread Sealant: | No |
Finish: | Black |
For Use with Pipe Schedule: | 40 |
For Use with Flanges/Fittings: | Class 150 |
NSF: | NSF 61 CERTIFIED |
Country Of Origin:
USA - Domestic
![PDF downloads](https://cdn7.bigcommerce.com/s-8n9tgf4ioq/product_images/uploaded_images/smallpdf.jpg)
Category Classification:
Pipe Fittings / Malleable Iron Pipe Fittings / Domestic Malleable Iron Fittings / MI Threaded Fittings Class 150
Warranty Information
![Quality promise](https://cdn7.bigcommerce.com/s-8n9tgf4ioq/product_images/uploaded_images/quality-guarantee-fittings-flanges-valves-nipples.jpg)
- You are entitled to quality products. If you find that the quality of your product is unacceptable?contact us.
- Our products are warranted?to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty?is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Dimensions / Images: - Dimensions provided are for reference only and subject to change.
- All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Shipping Policy: View Shipping Policy Here
Additional Information
Size (inches): |
6.00 (6") |
Material Type: |
Black Malleable Iron |
Product Type: |
Tee |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Specifications or Standards: |
UL/FM |
Specifications or Standards: |
NSF 61 |
Weight (lbs): |
25.5 |
Additional: |
Domestic - Made in USA |
