Anvil

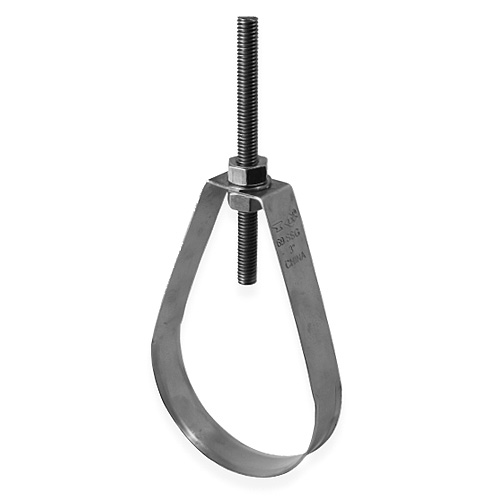

3 in. Pipe Size (NPS) - Light Duty 316 Stainless Steel Band Hanger - FIG 69SSG
(No reviews yet)
Write a Review
- SKU:
- BF0560810014
- MPN:
- 0560810014
- Availability:
- Available
- Weight:
- 0.21 LBS
Description
Material Specifications:
ANVIL Pipe Hangers & Supports / Pipe Attachments / Ring Hangers / Light Duty Stainless Steel Band Hanger FIG 69SSG
This product is made of T-316 Stainless Steel. It is recommended for the suspension of stationary pipe.
The Anvil light duty line of commercial hangers and supports is an economical choice for light duty plumbing and mechanical projects that do not require domestically sourced materials.
- Size Range: 1/2" through 8" NPS
- Material: 316 Stainless Steel
- Service: Recommended for the suspension of stationary steel pipe.
- Maximum Temperature: 650° F
- Approvals: MSS SP-58 (Type-10)
- Installation: Supplied with two stainless steel hex nuts.
PDF / Specs / Brochure:Additional Information
Size (inches): |
3.00 (3") |
Material Type: |
316 Stainless Steel |
Product Type: |
Band Hanger |
Category Type: |
Ring Hangers |
Weight (lbs): |
0.211 |
Additional: |
From Import |
Specifications or Standards: |
MSS SP-58 (Type-10) |
Max Load (lbs): |
970 |
Rod Size (inches): |
1/2" |
