Anvil
6 in. Pipe Size (NPS) - Light Duty Copper Ring Hanger - FIG 010CTG
(No reviews yet)
Write a Review
- SKU:
- BF0560805120
- MPN:
- 0560805120
- Availability:
- Available
- Weight:
- 0.76 LBS
Description
Material Specifications:

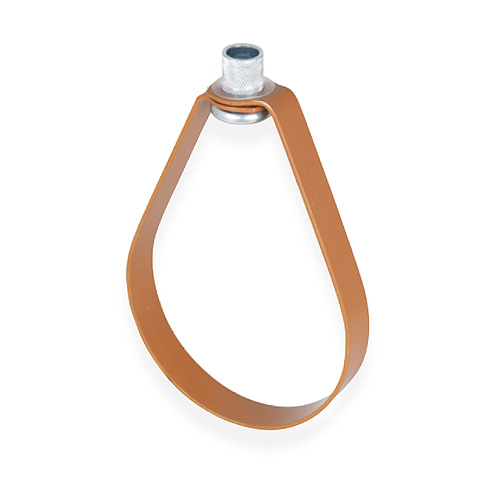

ANVIL Pipe Hangers & Supports / Pipe Attachments / Ring Hangers / Light Duty Copper Ring Hanger FIG 010CTG
This product is made of carbon steel and is epoxy coated. It is recommended for the suspension of non-insulated stationary copper tube.
The Anvil light duty line of commercial hangers and supports is an economical choice for light duty plumbing and mechanical projects that do not require domestically sourced materials.
- Size Range: 1/2" through 6"
- Maximum Temperature: 450° F
- Approvals: MSS SP-58 (Type-10)
- For U.S. domestic product see Anvil Fig CT-69
PDF / Specs / Brochure:Additional Information
Size (inches): |
6.00 (6") |
Material Type: |
Carbon Steel |
Product Type: |
Ring Hanger |
Category Type: |
Ring Hangers |
Weight (lbs): |
0.762 |
Additional: |
From Import |
Specifications or Standards: |
MSS SP-58 (Type-10) |
Max Load (lbs): |
480 |
Rod Size (inches): |
1/2" |
