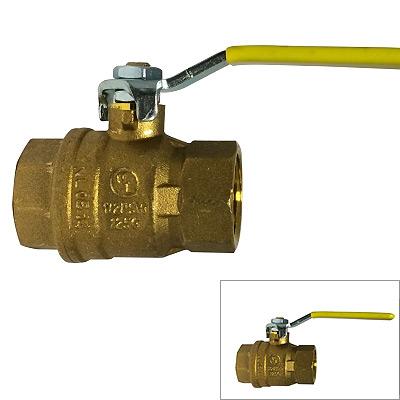

Name: 3/4" 600 WOG, CSA Full Port Italian Brass Ball Valve, Reversible Handle
Brand: BFO Select
SKU: BFO943-203
Price: 27.1 USD
Availability: InStock

3/4" 600 WOG, CSA Full Port Italian Brass Ball Valve, Reversible Handle

(No reviews yet) Write a Review

SKU:

BFO943-203

Availability:

Available

Weight:

0.04 LBS

Description
Additional Information
0 Reviews
Reviews

Description

Forged Brass Ball Valve Catalog & Specifications

ITALIAN BALL VALVES BRASS 600WOG FULL PORT
ISO 90002 Manufacturer
CSA FULL PORT BALL VALVE

Solid Chrome Plated Brass Ball
Suitable for full range of liquids and gases
Minimal pressure drop due to large full size ports
Bottom loaded, pressure retaining stem
Pressure rated at 600psi (42 bars) WOG (non-shock)
150 WSP (10.34 bars) saturated steam.
Virgin TFE stem packing seal, thrust washer and seats.
Yellow vinyl insulator on heavy duty plated carbon steel handles.
Fast 1/4 turn open or close operation
Low operating torque
Flow can go both directions
Generic Handles

Adjustable stem packing gland
Maximum operating temerature: 2480F (1200 C) at 600 PSI
Minimum operating temperature: -200F (-400C)
Each valve individually tested
Forged Brass - for more strength
Threaded ends to ANSI B1.20.1
Hard chromium plated solid ball
Bottom entry, blow-out proof stem
Deeper threads - for better connections
Female x Female
Reversible Handles
Made in Italy

View AllClose

Additional Information

Size (inches):	.750 (3/4")
Material Type:	Forged Brass
Category Type:	Industrial Valves
End Connection:	FIP x FIP
Handle Type:	Reversible
WOG Rating (psi):	600
Country of Origin:	Italy
Specifications or Standards:	CSA
Specifications or Standards:	UL/FM
Weight (lbs):	0.04
Additional:	From Import
