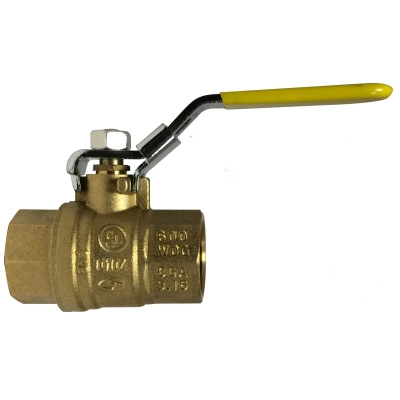

Name: 1-1/2 in. 600 WOG Full Port Ball Valve, Forged Brass, Generic Handles
Brand: BFO Select
SKU: BFO940-177
Price: 82.32 USD
Availability: InStock

1-1/2 in. 600 WOG Full Port Ball Valve, Forged Brass, Generic Handles

(No reviews yet) Write a Review

SKU:

BFO940-177

Availability:

Available

Weight:

2.02 LBS

Description
Additional Information
0 Reviews
Reviews

Description

Forged Brass Ball Valve Catalog & Specifications

1/4-2" 600 PSI non-shock cold water, gas, oil
150 PSI saturated steam
1/2" - 2" Sizes - Gas Approved
2-1/2"- 4" 400 PSI non-shock cold water, gas, oil
ISO 9002 Manufacturer
CSA UL FM

Suitable for full range of liquids and gases
Minimal pressure drop due to large full size ports
Bottom loaded, pressure retaining stem
Pressure rated for 1/4"-2" at 600psi (42 bars)
2-1/2"-4" at 400 psi WOG (non-shock) and 150 WSP (10.34 bars) saturated steam.
Virgin PTFE stem packing seal, thrust washer and seats
Yellow vinyl insulator on heavy duty plated carbon steel handles
Fast 1/4 turn open or close operation
Not Lead Free
Good for gasoline

Low operating torque
Adjustable stem packing gland
Maximum operating temperature: 3020F (1500 C)
Minimum operating temperature: -220F (-300C)
Each valve individually tested
Forged Brass - for more strength
Threaded ends to ANSI B1.20.1
Hard chromium plated solid ball
Bottom entry, blow-out proof stem
Deeper threads - for better connections
Made in China

View AllClose

Additional Information

Size (inches):	1.50 (1-1/2")
Material Type:	Forged Brass
Product Type:	Ball Valve
Category Type:	Industrial Valves
Port Type:	Full Port
WOG Rating (psi):	600
Specifications or Standards:	CSA
Specifications or Standards:	UL/FM
Weight (lbs):	2.02
Additional:	From Import
