BFO Select

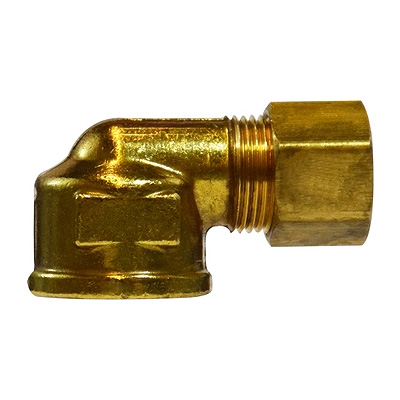

3/16 in. Tube O.D. x 1/8 in. Female NPTF - Female 90 Degree Elbow - Brass Compression Fitting - SAE#060203
(No reviews yet)
Write a Review
- SKU:
- BF18252
- MPN:
- 18252
- Availability:
- Available
- Weight:
- 0.04 LBS
Description
Applications:
- Use with copper, aluminum and thermoplastic tubing. Plastic tubing requires insert.
- Not recommended for steel tubing.
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
- Not recommended for application using gaseous media.
- *Not lead free*
End Connection:
Compression End (Tube O.D.) x Female NPTF Threaded
Female 90 Degree Elbows - Brass Compression Fittings
Operating Pressure:
View table here for working pressures at 73°F
Vibration:
Fair resistance - use long nut when greater vibration resistance is needed
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
(Refer to tubing temperature range)
(Refer to tubing temperature range)
Tolerance:
+/- .02 on all dimensions.
Dimension data can change without notice.
Please call us when dimensions are critical.
Dimension data can change without notice.
Please call us when dimensions are critical.
Conformance:
Meets specifications and standards of ASA, ASME and SAE.
Special Notes:
"L" at the end of a Part# means Light Pattern
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way.
This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
"B" at the end of a Part# means Barstock
PDF / Specs / BrochureAdditional:
Additional Information
Size (inches): |
.1875 (3/16") |
Size (inches): |
.125 (1/8") |
Material Type: |
Brass |
Product Type: |
Female Elbow |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Specifications or Standards: |
SAE |
Weight (lbs): |
0.04 |
Additional: |
From Import - China |
Industry Crossover: |
00070-0302, 70A-3A |
