BFO Select
1/8 in. Tube OD x 1/8 in. Male NPTF - Ball Check Valve - Brass Compression Fitting (3PSI Minimum Working Pressure)
(No reviews yet)
Write a Review
- SKU:
- BF18092
- MPN:
- 18092
- Availability:
- Available
- Weight:
- 0.04 LBS
Description
Applications:
- Use with copper, aluminum and thermoplastic tubing. Plastic tubing requires insert.
- Not recommended for steel tubing.
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
- Not recommended for application using gaseous media.
- *Not lead free*
End Connection:
Tube OD (Compression End) x Male NPTF Threads
Operating Pressure:
View table here for working pressures at 73°F
Minimum working pressure = 3PSI
Minimum working pressure = 3PSI
Vibration:
Fair resistance - use long nut when greater vibration resistance is needed
Temperature Range:
Temperature Range -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range)
Tolerance:
+/- .02 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.
Conformance:
Meets specifications and standards of ASA, ASME and SAE.
Special Notes:
"L" at the end of a Part# means Light Pattern
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way.
This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way.
This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
PDF / Specs / BrochureAdditional:
Additional Information
Size (inches): |
.125 (1/8") |
Material Type: |
Brass |
Product Type: |
Ball Check Valve |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Weight (lbs): |
0.04 |
Additional: |
From Import |
Related Products
Related Products
1/4 in. Tube OD x 1/8 in. Male NPTF - Ball Check Valve - Brass Compression Fitting (3PSI Minimum Working Pressure)
BFO Select
$11.21
Applications:
Use with copper, aluminum and thermoplastic tubing. Plastic tubing requires insert.
Not recommended for steel tubing.
Manufactured for low and medium pr
BF18094
3/8 in. Tube OD x 1/4 in. Male NPTF - Ball Check Valve - Brass Compression Fitting (3PSI Minimum Working Pressure)
BFO Select
$14.78
Applications:
Use with copper, aluminum and thermoplastic tubing. Plastic tubing requires insert.
Not recommended for steel tubing.
Manufactured for low and medium pr
BF18096
1/8 in. Tube OD x 1/8 in. Male NPTF, Push-In Fixed Male Elbow, Brass Push-to-Connect Tube Fitting
BFO Select
$6.95
View Sizing Push-to-Connect Fittings Technical Specificatio
BFO20-065
1/8 in. Tube OD x 1/8 in. Male NPTF Thread, Push-In Male Connector, Brass Push-to-Connect Tube Fitting
BFO Select
$3.70
View Sizing Push-to-Connect Fittings Technical Specificatio
BFO20-048

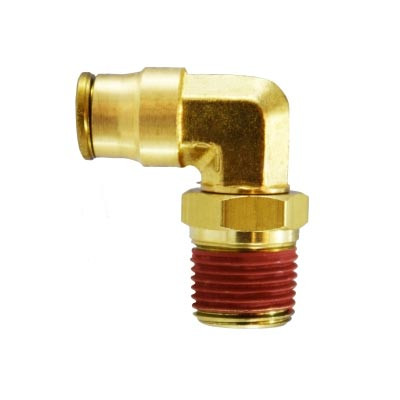

1/8 in. Tube OD x 1/8 in. Male NPTF - Push-In Swivel Male Elbow - Brass Push-to-Connect Fitting
