FPPI, Inc.

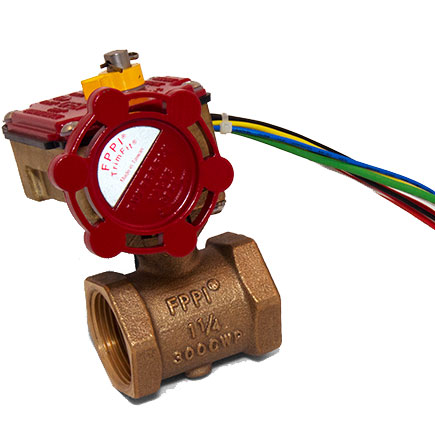

1-1/4 in. IPS TrimFit Bronze Butterfly Valve (FNPT x FNPT) UL/cULus/FM Fire Sprinkler System Product
- SKU:
- 06-502-00
- MPN:
- 06-502-00
- Availability:
- Available
- Weight:
- 4.12 LBS
Description
- TrimFit® Model BFT (Threaded Butterfly Valve) and Model BFG (Grooved Butterfly Valve) close slowly to prevent water hammer.
- The butterfly valves are designed to be installed in any orientation and monitored to signal if the valve is opened or closed.
- They are both UL Listed and FM Approved for use in a fire sprinkler system.
- Body: Bronze* - ASTM 584 C83600
- Handwheel: Steel - ASTM A216 WCB
- Seat: Viton - ASTM D2000
- Indicator: Powder Metal
- Housing/Cover: Forged Brass* - JIS C3771 (Ref. ASTM C37700)
- *Contains lead. Not for use in water systems intended for human consumption.
- Listings and Approvals: UL/ULc listed FM approved
- 1" Butterfly Valve: UL listed FM approved
Additional Information
Size (inches): |
1.25 (1-1/4") |
Product Type: |
Butterfly Valve |
Category Type: |
Fire Hydrant & Hose Fittings |
Weight (lbs): |
4.12 |
Additional: |
From Import |
