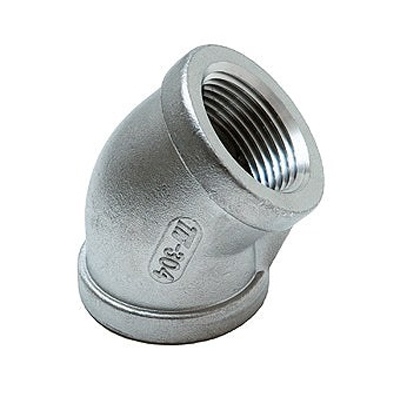

MSS 45 Degree Elbows
MSS SP-114 HEAVY PATTERN 150# CAST PIPE FITTINGS - 45 DEGREE ELBOWS
MSS SP-114 pipe fittings offer a heavy duty, thick wall pattern provides additional protection against erosion due to extremely high flow rates for increased system life.
The tight dimensional tolerances in lay length make the MSS SP-114 pattern fitting the number one choice for industrial and factory installations. They are commonly used in commercial and industrial piping systems in chemical plants, pulp & paper, petroleum, food & beverage, sanitary, steam systems, and general industrial processes that are subject to various stressors. Class 150 threaded stainless steel fittings connect with medium-pressure (300-999 psi) pipe.
- Stainless steel MSS-SP114 heavy pattern fittings are investment castings.
- Available in a full range from 1/8” to 4” in both 304 and 316 grades of stainless steel.
- All fittings are threaded to NPT standard in compliance to ASME B1.20.1
- Castings are made in accordance to ASTM 351 and heat treated and tested in accordance to ASTM A262
- For use with Pipe Schedule 40
-
DescriptionSKUPrice
-
BF4381060480$4.82
-
BF4381060500$4.82
-
BF4381060520$5.56
-
BF4381060540$6.11
-
BF4381060560$8.93
-
BF4381060580$10.78
-
BF4381060600$17.26
-
BF4381060620$20.53
-
BF4381060640$28.61
-
BF4381060660$74.97
-
BF4381060680$103.32
-
BF4381060700$183.87
-
BF4381065180$5.72
-
BF4381065200$5.72
-
BF4381065220$6.98
-
BF4381065240$7.67
-
BF4381065260$10.07
-
BF4381065280$12.61
-
BF4381065300$19.62
-
BF4381065320$23.33
-
BF4381065340$32.25
-
BF4381065360$80.63
-
BF4381065380$116.39
-
BF4381065400$219.11
