BFO Select

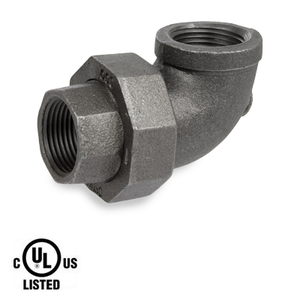

1 in. Black Pipe Fitting 300# Malleable Iron Threaded Union Elbow with Brass Seat, UL Listed
(No reviews yet)
Write a Review
- SKU:
- B300UE3010C
- Availability:
- Available
- Weight:
- 1.01 LBS
Description
Size: 1"
UL Listed, FM Approved
Class: 300#
Dimensions (inches): A= 2.81 B= 1.34 C= 1.77
- Class 150 pipe fittings are UL Listed and FM Approved at 300 psi
- Class 300 pipe fittings are UL Listed
- Hot-dipped galvanized pipe fittings are certified to; NSF/ANSI 61-4 & California AB1953 Lead Free
- Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 & ASME B16.39
- Hot-dipped galvanized pipe fittings conform to ASTM A153
- NPT threads on all pipe fittings conform to ASME B1.20.1
- Independent lab verification: fittings meet applicable chemical & physical properties.
- Manufacturing facilities are ISO 9001:2008 & ISO 14001.
- Fittings are 100% air tested.
- Canadian Registration Numbers (CRN) available
- Differences & Best Use: Black Pipe & Galvanized Pipe Fittings
- NPT, NPTF & NPS Connections
Additional Information
Size (inches): |
1.00 (1") |
Material Type: |
Black Malleable Iron |
Product Type: |
Union Elbow |
Features: |
Brass Seat |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
300 |
End Connection: |
NPT |
Specifications or Standards: |
UL |
Weight (lbs): |
1.01 |
Additional: |
From Import |
