BFO Select

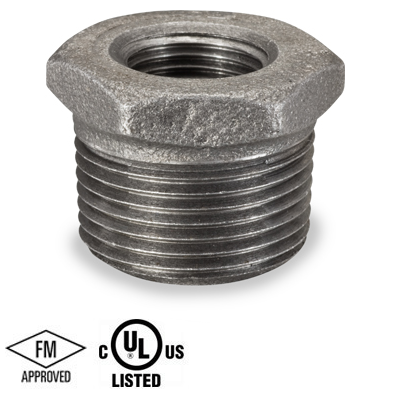

3/4 in. x 3/8 in. NPT Threaded Hex Bushing - 150# Malleable Iron Black Pipe Fitting - UL/FM
(No reviews yet)
Write a Review
- SKU:
- B15033HB1006003C
- Availability:
- Available
- Weight:
- 0.20 LBS
Description
Material Specifications:
150# Black Malleable Iron Threaded Cast Pipe Fittings
- Class 150 pipe fittings are UL Listed and FM Approved at 300 psi
- Class 300 pipe fittings are UL Listed
- Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 & ASME B16.39
- NPT threads on all pipe fittings conform to ASME B1.20.1
- Independent lab verification: fittings meet applicable chemical & physical properties.
- Manufacturing facilities are ISO 9001:2008 & ISO 14001.
- Fittings are 100% air tested.
End Connection:
NPT Threaded - ASME B1.20.1
Temperature Rating:
-20° to 350° deg F
Pressure:
Saturated steam 150 PSI @ 350°F;
Max pressure 300 PSI @ 150° F
Max pressure 300 PSI @ 150° F
Applications:
Use with air, water, oil, natural gas, steam
Standards Met:
Class 150# pipe fittings are UL Listed and FM Approved @ 300 PSI
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
COC Available:
COC -Yes
MTR - No (if required - see our domestic line from Anvil)
MTR - No (if required - see our domestic line from Anvil)
Additional:
Country of Origin:
From Import - China
From Import - China
PDF/ Specs / BrochureDimensions / Catalog Coming Online Soon - Contact us if dimensions needed
Additional Information
Size (inches): |
.750 (3/4") |
Size (inches): |
.375 (3/8") |
Material Type: |
Black Malleable Iron |
Product Type: |
Hex Bushing |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Specifications or Standards: |
UL/FM |
Weight (lbs): |
0.2 |
Additional: |
From Import |
Industry Crossover: |
33HB1006003C |
