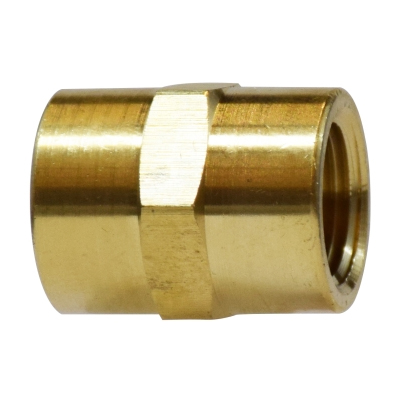

3/8 in. Coupling - FIP x FIP - NPTF Threads - Light Pattern - Up to 1200 PSI - Brass Pipe Fitting

Overall Length: 1 | Hex Size: 0.81

• Typical Application: Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
• Pressure: Operating pressure up to 1200 PSI.
• Vibration: Fair resistance.
• Temperature Range: -65° F to 250° F(-53°C to 121°C).
• Used With: Brass, bronze, copper, steel, aluminum and iron pipe.
• Tolerance: .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
• Conformance: Meets specifications and standards of ASA, ASME and SAE
• Not lead free

Note: L at the end of a Part# means Light Pattern - these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Assembly Instructions:
1- Tighten approximately 2-1/2 turns past hand tight.
2- Fittings with Everseal tighten two turns past hand tight. Brittle materials require special caution.

Pipe Fittings - Brass 3/8" Couplings, NPTF Threaded, 1200 PSI
