BFO Select

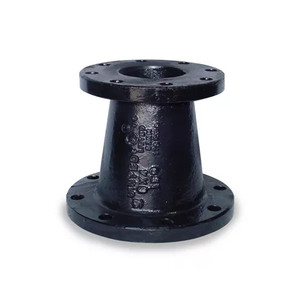

12 in. x 6 in. Concentric Reducer - 150 LB Ductile Iron Flanged Pipe Fitting - UL Listed
(No reviews yet)
Write a Review
- SKU:
- BFO38CR1120060
- Availability:
- Available - SHIPS FREE!
- Weight:
- 127.05 LBS
Description
Dimensions / Drawings:
Material Specifications:
- Flanged fittings are UL Listed through 12"
- Ductile iron conforms to ASTM A536
- Flanged pipe fitting dimensions conform to ASME B16.42 and ANSI/AWWA C110/A21.10
- Manufacturing facility is ISO 9001:2008
- Fire protection and general waterworks
- COCs are available upon request
Bolting Pattern Information:
Flanged end connections - ASME B16.42 Class 150 bolting pattern information:
All class 150# flange fittings listed conform and are manufactured to ASME B16.42 dimensions and bolting standard.
All class 150# flange fittings listed conform and are manufactured to ASME B16.42 dimensions and bolting standard.
| Size | Diameter of Bolt Holes | # of Bolt Holes | Bolt Size |
| 2" | 3/4" | 4 | 5/8" |
| 2-1/2" | 3/4" | 4 | 5/8" |
| 3" | 3/4" | 4 | 5/8" |
| 4" | 3/4" | 8 | 5/8" |
| 5" | 7/8" | 8 | 3/4" |
| 6" | 7/8" | 8 | 3/4" |
| 8" | 7/8" | 8 | 3/4" |
| 10" | 1" | 12 | 7/8" |
| 12" | 1" | 12 | 7/8" |
| 14" | 1-1/8" | 12 | 1" |
| 16"m | 1-1/8" | 16 | 1" |
| 18" | 1-1/4" | 16 | 1-1/8" |
| 20" | 1-1/4" | 20 | 1-1/8" |
| 24" | 1-3/8" | 20 | 1-1/4" |
Shipping:
- Individual items weighing 0 - 150 lbs. qualify for free shipping under our free shipping policy.
- Individual items that weigh over 150 lbs. do not qualify for free shipping and will ship LTL freight - rates will be reflected at checkout.
- View complete list of shipping terms here
Stocking Locations:
Stocked in multiple locations across USA including: East Coast, Central US and the West Coast - for lowest shipping costs (where applicable) and quickest delivery.
Additional Information
Size (inches): |
12.00 (12") |
Material Type: |
Ductile Iron |
Product Type: |
Concentric Reducer |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
Flanged |
Reducing Size (inches): |
6" |
Weight (lbs): |
127.05 |
Additional: |
From Import |
Specifications or Standards: |
ASME B16.42 |
Specifications or Standards: |
ANSI/AWWA C110/A21.10 |
