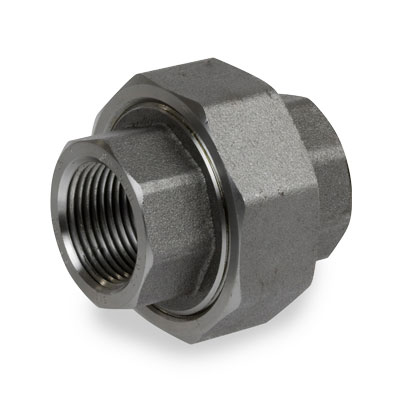

2-1/2 in. NPT Threaded - Union - 3000# Forged Carbon Steel Pipe Fitting - MSS-SP-83

• Manufactured, tested and certified in accordance with ASME 3A-105N & ASTM A105N Normalized
• Forged carbon steel pipe fitting dimensions listed are either minimums or set by the factory per ASME B16.11
• NPT threads on forged steel pipe fittings conform to ASME B1.20.1
• Forged carbon steel socket weld inserts conform to MSS-SP-79
• Forged carbon steel unions conform to MSS-SP-83
• Forged carbon steel outlet fittings conform to MSS-SP-97
• Manufacturing facility is ISO 9001:2008
• Canadian Registration Numbers (CRN) available upon request

Schedule B 730792.9000 or 730792.3010
ECCN EAR99
Country of Origin: From Import (China)

3000# Pipe Fittings:
Maximum Pressure 3,000 psi @ 72° F
Maximum Steam Pressure 300 psi @ 360° F
Pipe Nipples and Pipe: Use Schedule 160 steel
Flanges: Use Class 1500 steel

6000# Pipe Fittings:
Maximum Pressure 6,000 psi @ 72° F
Maximum Steam Pressure 300 psi @ 360° F
Pipe Nipples and Pipe: Use Schedule XXH Steel
Flanges: Use Class 1500 steel

Note: The maximum pressure listed for Class 6000 fittings is for conditions where there are no sudden changes in pressure or velocity. Please refer to ASME B16.11 to determine the specific maximum operating pressure for your application.
