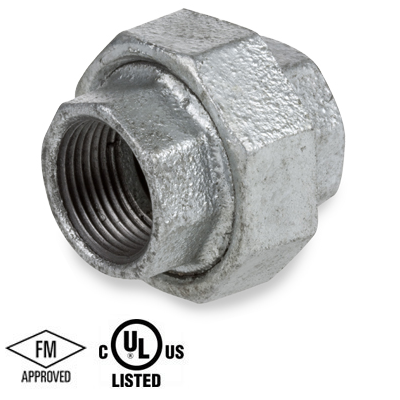

1/8 in. NPT Threaded - Union (Brass Seat) - 150# Malleable Iron Galvanized Pipe Fitting - UL/FM

Size: 1/8"
Approvals: UL/FM
Class: 150#

Dimensions (inches): A= 1.32

• Class 150 pipe fittings are UL Listed and FM Approved at 300 psi
• Class 300 pipe fittings are UL Listed
• Hot-dipped galvanized pipe fittings are certified to; NSF/ANSI 61-4 & California AB1953 Lead Free
• Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 & ASME B16.39
• Hot-dipped galvanized pipe fittings conform to ASTM A153
• NPT threads on all pipe fittings conform to ASME B1.20.1
• Independent lab verification: fittings meet applicable chemical & physical properties.
• Manufacturing facilities are ISO 9001:2008 & ISO 14001.
• Fittings are 100% air tested.
• Canadian Registration Numbers (CRN) available
• Differences & Best Use: Black Pipe & Galvanized Pipe Fittings
• NPT, NPTF & NPS Connections
