BFO Select

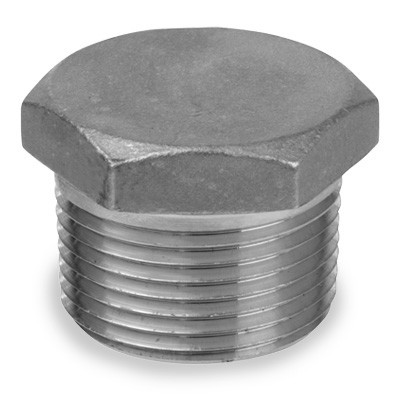

2-1/2 in. NPT Threaded - Hex Head Plug - 150# Cast 304 Stainless Steel Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- 8-J
- Availability:
- Available
- Weight:
- 1.35 LBS
Description
Material Specifications:
Hex Head Plug - 150# Cast NPT Threaded Pipe Fittings
Class 150 stainless steel 304 & 316 cast pipe fitting hex head plugs. Features male National Pipe Taper (NPT) threads for closing the end of a female threaded pipe. Plugs insert into female pipes or fittings and connects with NPT threads, which create a tighter seal than straight threads. The hexagonal head allows for increased leverage and use with a wrench during installation and disassembly.
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72° F
- Maximum Steam Pressure: 150 psi @ 366° F
- 304 stainless castings conform to ASTM A351 ACI Grade CF8
- 316 stainless steel castings conform to ACI Grade CF8M
- Manufacturing facility is ISO 9001:2008
- Quality guarantee on all pipe fittings
- For Use with Schedule 40 Pipe Nipples and 150# Flanges
End Connection:
NPT Threaded - ASME B1.20.1
Applications:
Use with air, water, oil, natural gas, steam
MTRS / COC Available:
Both available upon request at time of order
Additional:
Schedule B 7307.29.0090
ECCN 2B999
Country of Origin:
From Import (varies - subject to change - China/Phillipines/Taiwan/Other)
PDF/ Specs / BrochureWarranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Dimensions / Images: - Dimensions provided are for reference only and subject to change.
- If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.
- All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Shipping Policy: View Shipping Policy Here
Additional Information
Size (inches): |
2.50 (2-1/2") |
Material Type: |
304 Stainless Steel |
Product Type: |
Hex Head Plug |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
1.35 |
Industry Crossover: |
S3114HP024 |
Additional: |
From Import |
Industry Crossover: |
62639 |
