BFO Select

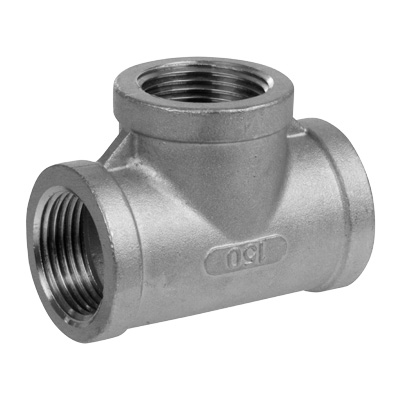

2 in. NPT Threaded - Tee - 150# Cast 316 Stainless Steel Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- 19-U
- Availability:
- Available
- Weight:
- 1.97 LBS
Description
Material Specifications:
Reducing Couplings - 150# Threaded Pipe Fittings - Cast
Class 150# stainless steel 304 and 316 cast pipe fitting reducing couplings with female National Pipe Taper (NPT) threads for connecting two sections of male pipe or fittings. National Pipe Taper (NPT) threads for creating tighter seals than straight threads.
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72° F
- Maximum Steam Pressure: 150 psi @ 366° F
- 304 stainless castings conform to ASTM A351 ACI Grade CF8
- 316 stainless steel castings conform to ACI Grade CF8M
- Manufacturing facility is ISO 9001:2008
- Quality guarantee on all pipe fittings
- For Use with Schedule 40 Pipe Nipples and 150# Flanges
End Connection:
NPT Threaded - ASME B1.20.1
Applications:
Use with air, water, oil, natural gas, steam
MTRS / COC Available:
Contact us if MTR is required.
COC can be supplied with order.
COC can be supplied with order.
Additional:
Schedule B 7307.29.0090
ECCN 2B999
Country of Origin:
From Import (varies - subject to change - China/Phillipines/Taiwan/Other)
PDF/ Specs / BrochureWarranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Dimensions / Images: - Dimensions provided are for reference only and subject to change.
- If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.
- All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Shipping Policy: View Shipping Policy Here
Additional Information
Size (inches): |
2.00 (2") |
Material Type: |
316 Stainless Steel |
Product Type: |
Tee |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
1.97 |
Additional: |
From Import |
