90 Degree Elbows
90° Elbows - 150# Stainless Steel Cast Threaded Pipe Fittings
150# ISO Industry Standard Cast Stainless Steel Pipe Fittings

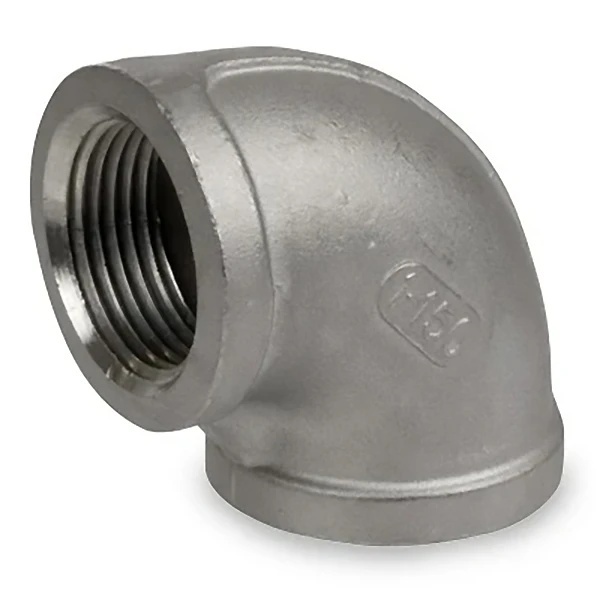

90 degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Our high quality standard pattern 150 lb rated stainless steel threaded pipe fittings are manufactured to the highest standards. All stainless steel pipe fittings are monitored by quality control personnel for strict compliance with applicable standards & specifications. These stainless steel pipe fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fitting will prevent contamination making it useful to many professionals.
- Use with air, water, oil, natural gas, steam
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72 F;150 psi @ 366 F for steam
- Maximum Steam Pressure: 150 psi
- Stainless castings conform to ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
- Manufacturing facility is ISO 9001:2008
- Quality Guarantee on all Pipe Fittings
-
DescriptionSKUPrice
-
1-A$2.80
-
1-B$2.80
-
1-C$3.48
-
1-D$3.70
-
1-E$5.31
-
1-F$7.60
-
1-G$13.20
-
1-H$17.74
-
1-I$22.49
-
1-J$51.23
-
1-K$65.29
-
1-L$126.22
-
18-M$3.59
-
18-N$3.59
-
18-O$4.35
-
18-P$4.81
-
18-Q$6.97
-
18-R$8.84
-
18-S$15.16
-
18-T$20.21
-
18-U$25.55
-
18-V$56.13
-
18-W$77.22
-
18-X$140.58
