BFO Select

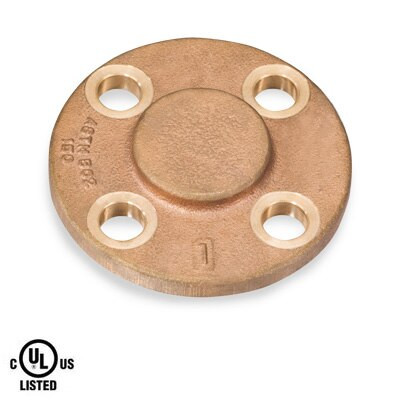

1-1/2 in. NPT Threaded Blind Flange - 150# Bronze Pipe Fitting - UL Listed
(No reviews yet)
Write a Review
- SKU:
- BF16BL1014
- Availability:
- Available
- Weight:
- 3.59 LBS
Description
Class 125 (150) For steam, water, gas, oil and air service Bronze threaded fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe. All fittings are individually tested under water to ensure quality. Bronze provides a tighter seal and is easier to install than other metals. Can be used for water, plumbing, heating, pneumatic and marine applications, able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.
Bronze 150# Floor Flanges
- Bronze castings conform to ASTM B62, UNS Alloy C83600
- Bronze flange dimensions conform to ASME B16.24
- NPT threads on all flanges conform to ASME B1.20.1
- Manufacturing facilities are ISO 9001:2008 and ISO 14002
- 100% air tested
- Independent lab verification of applicable chemical & physical properties
- Not Lead Free
| Size (inches) | Hole Size | Number of holes | A in | B in | C in | Weight lb | Bronze Part Number |
| 3/4 | 5/8 | 4 | 3.88 | 2.75 | 0.62 | 1.0 | 16BL1006 |
| 1 | 5/8 | 4 | 4.25 | 3.12 | 0.69 | 1.7 | 16BL1010 |
| 1-1/4 | 5/8 | 4 | 4.62 | 3.50 | 0.81 | 2.5 | 16BL1012 |
| 1-1/2 | 5/8 | 4 | 5.00 | 3.88 | 0.88 | 3.0 | 16BL1014 |
| 2 | 3/4 | 4 | 6.00 | 4.75 | 1.00 | 5.5 | 16BL1020 |
| 2-1/2 | 3/4 | 4 | 7.00 | 5.50 | 1.12 | 8.5 | 16BL1024 |
| 3 | 3/4 | 4 | 7.50 | 6.00 | 1.19 | 10.5 | 16BL1030 |
| 4 | 3/4 | 8 | 9.00 | 7.50 | 1.31 | 16.5 | 16BL1040 |
| 6 | 7/8 | 8 | 11.0 | 9.50 | 1.56 | 32.5 | 16BL1060 |
Additional Information
Size (inches): |
1.50 (1-1/2") |
Material Type: |
Bronze |
Product Type: |
Blind Flange |
Category Type: |
Pipe Flanges |
Pressure Rating (psi): |
150 |
Specifications or Standards: |
UL |
Number of Bolt Holes: |
4 |
Weight (lbs): |
3.59 |
Additional: |
From Import |
