BFO Select

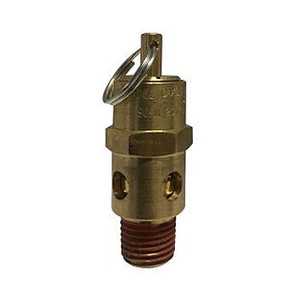

1/4 in. NPT 200 PSI Brass ASME Coded Safety Compressor Valve
(No reviews yet)
Write a Review
- SKU:
- 87004
- MPN:
- 87004
- Availability:
- Available
- Weight:
- 0.50 LBS
Description
- Valves are manufactured to ASME standards and certified by the national board of boiler and pressure vessel inspectors.
- Bubble tight to 10% of set pop-off pressure.
- ASME safety valves are interchangeable with all other ASME valves of same size and pressure.
- Brass construction.
- 1/ Blister card.
- Note: Valve resets after pressure drops 50%
| Part # | Male NPT | Pop-off Pressure | Air Flow |
| 87001 | 1/4" | 70 PSI | 70 CFM |
| 87002 | 1/4" | 125 PSI | 120 CFM |
| 87003 | 1/4" | 150 PSI | 140 CFM |
| 87004 | 1/4" | 200 PSI | 170 CFM |
Additional Information
Size (inches): |
.250 (1/4") |
Material Type: |
Brass |
Product Type: |
Safety Compressor Valve |
Category Type: |
Pneumatics |
Pressure Rating (psi): |
200 |
End Connection: |
NPT |
Specifications or Standards: |
ASME |
Weight (lbs): |
0.5 |
Additional: |
From Import |
