BFO Select

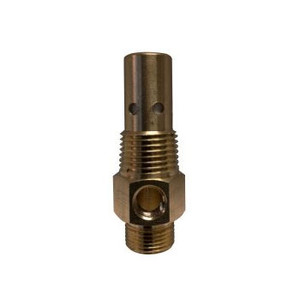

1/2 in. Male NPT x 1/2 in. Female NPT 450 PSI Brass Compressor Tank Check Valve
(No reviews yet)
Write a Review
- SKU:
- BFO87023
- MPN:
- 87023
- Availability:
- Available
- Weight:
- 0.50 LBS
Description
- Used in compressor tanks to prevent air volume and pressure from escaping back into compressor heads while the compressor is not operating.
- Brass body with Teflon poppet.
- 1/8" Female NPT side port for pressure switch application
- Maximum working pressure: 450 PSI
- Maximum temperature: 400°F
| Part # | Tank Bung Hole Size | Compressor Air Line Size | SCFM |
| 87020 | 1/2" NPT Male | 3/8" Tube Compression Male | 20 |
| 87021 | 1/2" NPT Male | 1/2" Tube Compression Male | 20 |
| 87023 | 1/2" NPT Male | 1/2" NPT Female | 20 |
Additional Information
Size (inches): |
.500 (1/2") |
Material Type: |
Brass |
Product Type: |
Tank Check Valve |
Category Type: |
Pneumatics |
Pressure Rating (psi): |
450 |
End Connection: |
MNPT x FNPT |
Weight (lbs): |
0.5 |
Additional: |
From Import |
