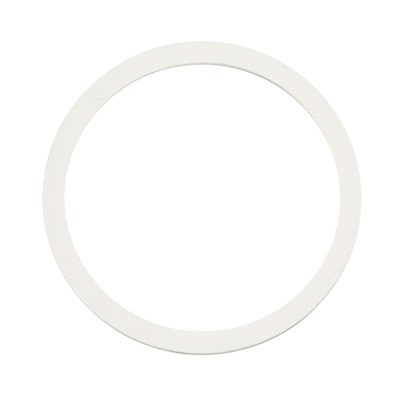

Name: 6 in. PTFE I-Line Sanitary Gasket (3-A)
Brand: BFO Select
SKU: BF40IT-6
Price: 60.37 USD
Availability: InStock

6 in. PTFE I-Line Sanitary Gasket (3-A)

(No reviews yet) Write a Review

SKU:

BF40IT-6

Availability:

Available

Weight:

0.02 LBS

Description
Additional Information
0 Reviews
Reviews

Description

Female I-Line Long Weld Ferrules (15WLI) Stainless Steel Sanitary I-Line Fittings Drawing

PTFE I-Line Gaskets

For use with male and female I-Line applications only
3-A Sanitary Certified
View Datasheet

Part Number Cross Reference:

Wayland	Alfa Laval	Dixon	VNE	Topline	Sanitary Solutions
40IT	40IT	40IT	40IT	40IT	40IT

I-Line Gasket Product Data Table

TUBE O.D.	GASKET I.D.	GASKET O.D.	EPDM	PTFE	BUNA	FKM	SILICONE
1"	1.26	0.87	BF40IE-1	BF40IT-1	BF40IU-1	BF40IV-1	BF40IX-1
1-1/2"	1.75	1.37	BF40IE-15	BF40IT-15	BF40IU-15	BF40IV-15	BF40IX-15
2"	2.25	1.87	BF40IE-2	BF40IT-2	BF40IU-2	BF40IV-2	BF40IX-2
2-1/2"	2.76	2.37	BF40IE-25	BF40IT-25	BF40IU-25	BF40IV-25	BF40IX-25
3"	3.31	2.87	BF40IE-3	BF40IT-3	BF40IU-3	BF40IV-3	BF40IX-3
4"	4.31	3.832	BF40IE-4	BF40IT-4	BF40IU-4	BF40IV-4	BF40IX-4
6"	6.91	5.782	BF40IE-6	BF40IT-6	BF40IU-6	BF40IV-6	BF40IX-6

Gasket Materials Color Coding

MATERIAL	PART# I.D.	COLOR	COLOR CODE	USEFUL TEMPERATURE
BUNA	U	BLACK	ONE OR THREE RED DOTS	-25°F to 225°F
BUNA	UW	WHITE	ONE RED DOT	-25°F to 225°F
EPDM SULFUR CURED	E	BLACK	ONE GREEN DOT	-40°F to 275°F
FKM	SFY	BLACK / BROWN	ONE WHITE / ONE YELLOW	-15°F to 375°F
FKM	WSFY	WHITE	ONE YELLOW	-15°F to 375°F
SILICONE PEROXIDE CURED	XW	WHITE	ONE PINK DOT	-50°F to 400°F
SILICONE PLATINUM CURED	X	CLEAR	NO DOT	-50°F to 400°F
PTFE	G	WHITE	NO DOT	-10°F to 300°F
PTFE WITH 50% 316 PARTICLES	GTS	SILVER	NO DOT	-20°F to 450°F

View AllClose

Additional Information

Size (inches):	6.00 (6")
Material Type:	PTFE
Product Type:	I-Line Gasket
Category Type:	I-Line Fittings
Specifications or Standards:	3-A
Style:	40IT
Weight (lbs):	0.02
Additional:	From Import
