BFO Select

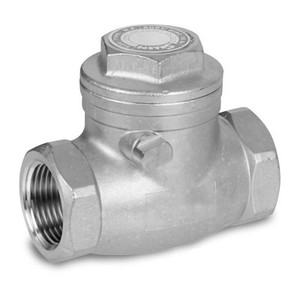

1-1/4 in. Female NPT Threaded - 200# CWP/125# WSP - PTFE Seal - 316 Stainless Steel Swing Check Valve
(No reviews yet)
Write a Review
- SKU:
- BAC-120-S
- MPN:
- 949356
- Availability:
- Available
- Weight:
- 2.40 LBS
Description
Specifications:
Swing Check Valve, 1-1/4 in Nominal, FPT, CF8M 316 Stainless Steel Body, Import
Body Material : CF8M 316 Stainless Steel
Disc Material : CF8M 316 Stainless Steel
Domestic/Import : Import
Inlet to Outlet Length : 3.93 in
Nominal Size : 1-1/4 in
Opening Size : 1.26 in
Pressure Rating : 200 psi
Seal Material : PTFE
Top to Inlet Center : 2.32 in
Warranty : 1 Year
Standard Approvals: ANSI B2.1
Additional Information: CF8 Stainless Steel Pipe Plug and Screw, CF8M Stainless Steel Cap, 3.93 in L, 1-1/4-11-1/2 Thread Size
PDF / Specs / Brochure:Industry Crossover:
60SSTH06, SC602L
Additional Information
Size (inches): |
1.25 (1-1/4") |
Material Type: |
316 Stainless Steel |
Product Type: |
Check Valve |
Category Type: |
Industrial Valves |
End Connection: |
NPT |
Style: |
Swing |
WSP Rating (psi): |
125 |
Weight (lbs): |
2.4 |
Additional: |
From Import |
