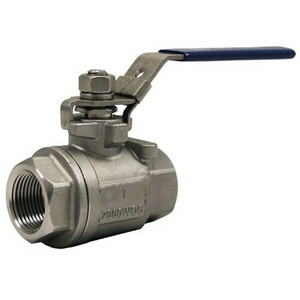

3/4 in. NPT Threaded - 2-Piece Full Port Ball Valve - 2000 PSI/WOG - 316 Stainless Steel Valve (Locking Handle)

2000 PSI Stainless Steel 2 Piece Full Port Ball Valves Features:

2000 PSI Ball Valves are robust High Pressure.
Valves used to control a flow shut-off in high pressure applications.
Since the valve body is comprised of two parts, they can be serviced.

• Mediums: Water, Oil & Gas. (WOG)
• Seats & Seals: Teflon (PTFE)
• Threads: Female NPT (National Pipe Thread)
• Full Port: Full Port Ball Valve
• Handle: Blow-Out Proof
• Handle Locking Mechanism: handle equipped with locking device
• Material: Manufactured from robust Stainless Steel 316

• Robust design for high pressure
• Perfect for robust environments where high pressures fittings are required.
• Blow out Proof Handles Stem
• They connect easily to a standard threaded pipe

• 2000 WOG (1/4" - 2")
• 150 lb. Steam Ratings (Saturated) with RTFE Seats

• Seal Seat is composed of Teflon (PTFE) which makes this valve corrosion resistant plus heat & chemical resistant.
• 15% glassfiber fill PTFE reinforced seat, PTFE seal & packing.

• Suitable to be used with any substance compatible with Stainless Steel and Teflon (PTFE).
• All wetted parts of the valve that touch the product being transferred are PTFE (Teflon) and 316 Stainless steel (CF8M).

• Design Standard: ASME B16.34
• Nominal Diameter: DN8-DN50 (1/4"-2")
• End Connections: DIN259/2999; ISO228/1&ISO7/1
• Threads: ASME B1.20.1, BS21
• Inspection & Testing: According to API 598, EN12266-1
