1/2 in. (2.42 in. OAL) 90 Degree Elbow Barbed Splicers 304 Stainless Steel Beverage Fitting (Economy)

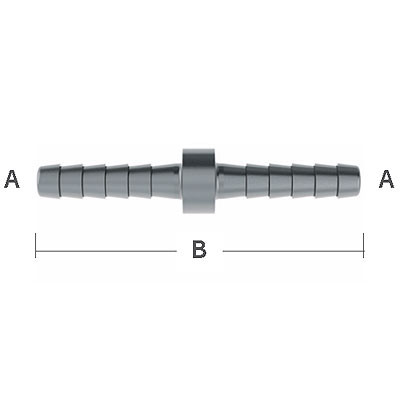

Dimensions:

• A (Barb)= 1/2 in. (13.51mm)
• B (Length)= 2.42 in. (61.5mm) (economy)

• Fittings made of stainless steel are durable, reusable and perform better over time than plastic fittings, which can deteriorate and leak.
• Our fittings are precision-tooled for consistently clean welds and sharp barbs, ensuring a tight fit without leakage under pressure.
• Our stainless steel fittings are made from a combination of 303 and 304 materials.
• Type 303 is certified to either ASTM A581/A582 or AMS 5640.
• Type 304 is certified to AMS 5639 or ASTM A479.
• In cases where tubing is used, it is 304 stainless steel certified to ASTM A269.
• All of the stainless steel that enters our plant is certified by the steel mill from which we purchase.
• Copies of these certifications will be furnished upon request.
• Our fittings are periodically tested for sulfur and leachable iron content by an independent, bonded testing laboratory.
• Reports on the test will be furnished upon request.
• All stainless steel fittings are passivated per ASTM A967 to meet the standards of major food and beverage companies.
• All fittings are made of stainless steel except for nickel-plated brass nuts and brass check valves.
