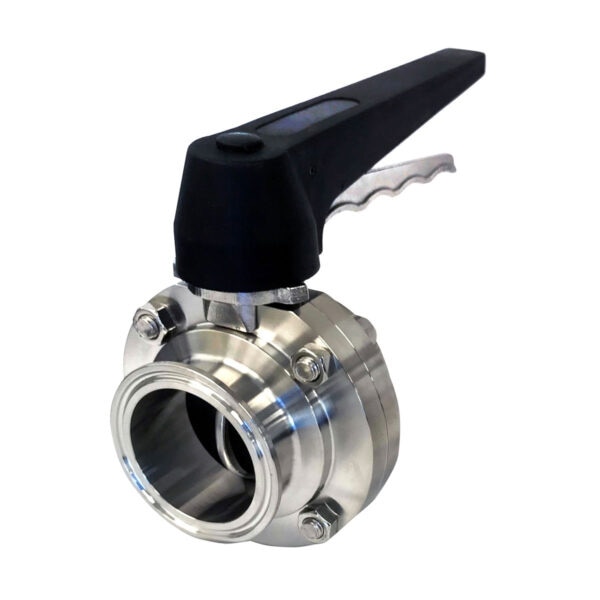

Name: 2 in. Clamp End - Trigger Handle - Viton Seat - 304 Stainless Steel Sanitary Clamp End Butterfly Valve
SKU: BF4BFVTC-V-2-TP
Price: 180.55 USD
Availability: InStock

2 in. Clamp End - Trigger Handle - Viton Seat - 304 Stainless Steel Sanitary Clamp End Butterfly Valve

(No reviews yet) Write a Review

SKU:

BF4BFVTC-V-2-TP

Availability:

Available

Weight:

3.20 LBS

Description
Additional Information
0 Reviews
Reviews

Description

Stainless Steel Sanitary Sample Valve (SVW)

Clamp End Butterfly Valve Plastic Trigger Handle (BFVTC-TP)

Butterfly Valves Overview

Material: 304 forged stainless steel body and disc
100% hydraulic tested / 100% inspected
Field serviceable (no special tools required)
Vacuum rating: 0.4 inches Hg at 68??F
Seat options: EPDM (standard), Silicone, FKM
12 position Trigger handle
Low resistance to flow
Bi-directional flow
Polyacetal bushings for the valve disc for reduced friction and increased life cycle
All wetted surfaces are sanitary finished to 32Ra minimum
Lockout / Tagout handle
Repair Kits Available

Dimensions

Tube O.D.	A	B	C	L	L1 (TH)	H1 (TH)	L2 (PH)	H2 (PH)
1"	0.870	1.000	1.988	2.677	6.299	3.583	5.000	3.031
1-1/2"	1.370	1.500	1.988	2.756	6.299	3.780	5.039	3.150
2"	1.870	2.000	2.520	2.992	6.299	3.858	5.315	3.465
2-1/2"	2.370	2.500	3.051	3.307	6.299	4.213	5.433	3.740
3"	2.870	3.000	3.583	3.307	6.299	4.528	5.906	4.016
4"	3.835	4.000	4.685	3.622	6.299	4.921	6.339	4.685
6"	5.780	6.000	6.575	4.331	8.268	6.299	6.693	6.299

Specifications
Information below is based on water media at 68°F / 20°C

Break Torque (LBS)				Pressure Rating (PSI)	Flow Coefficient
Size	Silicone	EPDM	FKM	Pressure Rating (PSI)	Flow Coefficient
1"	20	75	70	160	23
1-1/2"	40	130	125	160	80
2"	55	165	175	160	230
2-1/2"	70	210	220	140	264
3"	165	350	310	140	372
4"	350	540	450	140	800
6"	700	1550	750	110	1200

304 Clamp End Butterfly Valve with Plastic Trigger Handle

Break Torque (LBS)				Pressure Rating (PSI)	Flow Coefficient
Size	Silicone	EPDM	FKM	Pressure Rating (PSI)	Flow Coefficient
1"	20	75	70	160	23
1-1/2"	40	130	125	160	80
2"	55	165	175	160	230
2-1/2"	70	210	220	140	264
3"	165	350	310	140	372
4"	350	540	450	140	800
6"	700	1550	750	110	1200

View AllClose

Additional Information

Size (inches):	2.00 (2")
Material Type:	304 Stainless Steel
Product Type:	Butterfly Valve
Category Type:	Sanitary Valves
End Connection:	Clamp End
Features:	Viton Seat
Weight (lbs):	3.2
Additional:	From Import
