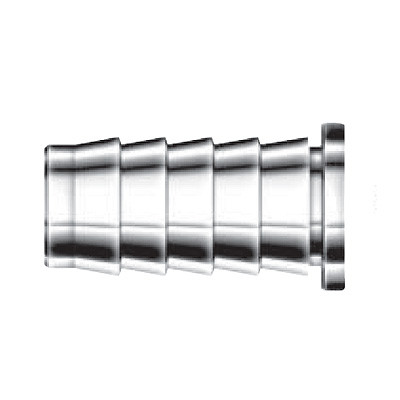

1 in. Tube OD x 3/4 in. Tube ID - 316 Stainless Steel Insert - Compression Tube Fitting

• Compression, Instrumentation, Vacuum, Gas, Cryogenic, High pressure and Temperature Service.
• These tube fittings are designed using industrial codes and specifications with additional cutting edge engineering on swaging action and sealing integrity.
• They also provide excellent leak-fee sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration and many other stringent applications.
• All tube fittings are double ferrule and consist of a body, front ferrule, back ferrule and nut.
• Stainless steel bar stock conforms to ASTM A276, ASTM 479, ASME SA479 and JIS GA 303.
• Stainless steel forged fittings conform to ASTM A182, ASME SA 182 and JIS G3214.
• The pressure rating of a BFO Tube Fitting is rated to the working pressure of the connective tubing.

Tube insert supports the soft plastic tube internally. This helps the soft tube to connect to the tube end port with no collapse.

Double Ferrule

Many tube fittings have a male or female pipe end. These ends sometimes have a lower pressure rating than the pressure rating of the tube fitting end. The ratings shown above are based on ASME B31.3-1999.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.

Tube Insert Data Sheet / Dimensions

Operating Pressures & Temperatures: SS Compression Tubing
