BFO Select
1/4 in. Barb x 1/4 in. Nut 90 Degree Swivel Elbow Stainless Steel - Low Pressure Beverage System Fitting
(No reviews yet)
Write a Review
- SKU:
- BEV-674
- Availability:
- Available
- Weight:
- 0.05 LBS
Description

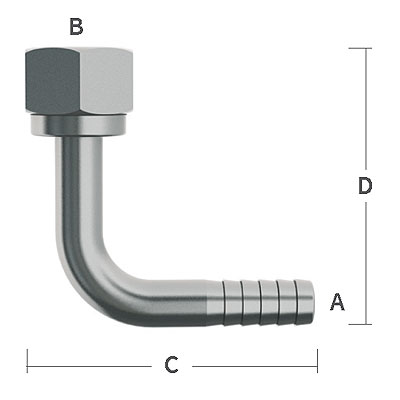

Dimensions:
- A (Barb)= 1/4 in. (7.24mm)
- B (Nut)= 1/4 in. (7/16-20)
- C (Length)= 1.50 in. (38.1mm)
- D (Height)= 1.60 in. (40.6mm)
- Fittings made of stainless steel are durable, reusable and perform better over time than plastic fittings, which can deteriorate and leak.
- Our fittings are precision-tooled for consistently clean welds and sharp barbs, ensuring a tight fit without leakage under pressure.
- Our stainless steel fittings are made from a combination of 303 and 304 materials.
- Type 303 is certified to either ASTM A581/A582 or AMS 5640.
- Type 304 is certified to AMS 5639 or ASTM A479.
- In cases where tubing is used, it is 304 stainless steel certified to ASTM A269.
- All of the stainless steel that enters our plant is certified by the steel mill from which we purchase.
- Copies of these certifications will be furnished upon request.
- Our fittings are periodically tested for sulfur and leachable iron content by an independent, bonded testing laboratory.
- Reports on the test will be furnished upon request.
- All stainless steel fittings are passivated per ASTM A967 to meet the standards of major food and beverage companies.
- All fittings are made of stainless steel except for nickel-plated brass nuts and brass check valves.
Additional Information
Size (inches): |
.250 (1/4") |
Product Type: |
90° Swivel |
Category Type: |
Beverage Fittings |
Pressure Rating (psi): |
<150 |
Additional: |
From Import |
