BFO Select

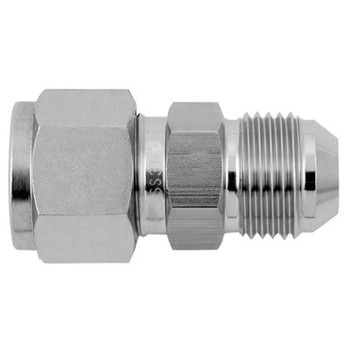

1 in. Tube O.D. x 1 in. Male AN - AN Union - Double Ferrule - 316 Stainless Steel Compression Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 30-AU-1-1
- Availability:
- Available
- Weight:
- 0.50 LBS
Description
Applications::
Tube to AN connectors are designed to connect onto individual tube lines leaving a 37 degree male JIC connection typically for connecting to a flexible hose having a female 37 degree swivel nut; in both single ferrule and double ferrule designs.
- Uses include: instrumentation, high pressure and temperature, cryogenic service, and process and control systems where high quality tube fittings are required.
- These tube fittings are designed using industrial codes and specifications with additional cutting edge engineering on swaging action and sealing integrity.
- They also provide excellent leak-fee sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration and many other stringent applications.
- All tube fittings are double ferrule and consist of a body, front ferrule, back ferrule and nut.
- Stainless steel barstock conforms to ASTM A276, ASTM 479, ASME SA479 and JIS GA 303
- Stainless steel forged fittings conform to ASTM A182, ASME SA 182 and JIS G3214
- The pressure rating of a BFO Tube Fitting is rated to the working pressure of the connective tubing.
- CAD drawings available upon request.
Connection::
Connects fractional tube x AN flared tube
Classification: Tube x AN Tube
Classification: Tube x AN Tube
Ferrule System::
Double Ferrule
Operating Ranges::
- Maximum Operating Pressure : 11000 psi (757 bar) @ 100°F (38°C)
- Operating Temperature Range : 325°F (-19°C) to 1200°F (648°C)
PDF / Specs / Brochure:* These tube fittings intermix and interchange with all major brands of compression tube fittings.
* Dimensions are for reference only and subject to change.
* Product images are a generic image for reference and not size specific.
Additional Information
Size (inches): |
1.00 (1") |
Material Type: |
316 Stainless Steel |
Product Type: |
AN Union |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Weight (lbs): |
0.5 |
Industry Crossover: |
DUA16-16-S |
Additional: |
From Import |
