BFO Select

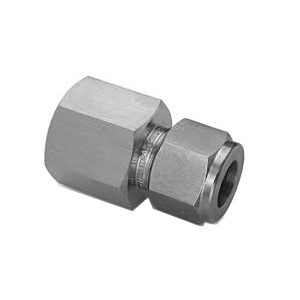

1 in. Tube O.D. x 1 in. FNPT - Female Connector - Double Ferrule - 316 Stainless Steel Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 30-FC-1-1
- Availability:
- Available
- Weight:
- 0.60 LBS
Description
Applications:
Instrumentation, high pressure and temperature, cryogenic service, and process and control systems where high quality tube fittings are required.
Provide a highly reliable, leak proof and torque free seal on all tubing connections.
These double ferrule tube fittings have been designed specifically for the many demanding applications such as chemical, petroleum, power generating, pulp, paper and various types of manufacturing industries.
End Connection::
Tube O.D. x Female NPT Threads
Connects fractional compression tube end to male NPT thread
Connects fractional compression tube end to male NPT thread
Fittings Series Maximum Operating Pressure:
11,000 psi (757 bar) @ 100°F(38°C)
Fittings Series Operating Temperature Range:
325°F(-198°C) to 1200°F(648°C)
Size:
OD 1/16 - 2 inch, OD 2mm - 38mm
Style:
Double Ferrule Compression Tube Fittings
Pipe End Pressure Ratings::
Many tube fittings have a male or female pipe end. These ends sometimes have a lower pressure rating than the pressure rating of the tube fitting end.
The ratings provided are based on ASME B31.3-1999.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
The ratings provided are based on ASME B31.3-1999.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
PDF/ Specs / BrochureAdditional:
* These tube fittings intermix and interchange with all major brands of compression tube fittings.
* Fittings are from import.
* Fittings are from import.
Additional Information
Size (inches): |
1.00 (1") |
Material Type: |
316 Stainless Steel |
Product Type: |
Female Connector |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Style: |
Double Ferrule |
Weight (lbs): |
0.6 |
End Connection: |
Tube OD x FNPT |
Additional: |
From Import |
