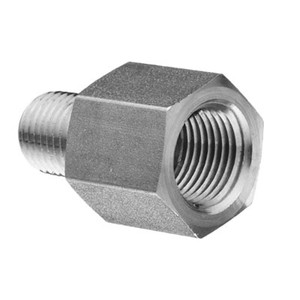

1/4 in. Male x 1/2 in. Female - NPT Threaded - Reducing Adapter - 316 Stainless Steel High Pressure Instrumentation Pipe Fitting (PSIG=4,700)
- SKU:
- 4051-PN
- Availability:
- Available
- Weight:
- 0.25 LBS
Description
Material Specifications:
End Connection: Reducing Adapters - Male NPT x LARGER Female NPT Threads
Standard High Pressure Instrumentation Threaded Fittings Features:
- Wrench flat body design allowing standard hex wrench assembly
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
- Fine pipe thread construction equals or exceeds the requirement of ASME B1.20.1 to ensure maximum thread engagement.
- Male pipe threads capped for protection from damages.
- Fitting materials available in SS316, Brass and Carbon Steel.
Threaded Fittings Standard Rating:
- These Standard Rating Fittings are designed to the requirements of ASME B31.3 process piping code.
- These pipe thread sizes are available 1/8 in. to 1 in. NPT
- Pressure ratings listed are for temperature up to 37°C (100°F)
- Pressure rating is calculated at -28° to 37°C (-20° to 100°F) using allowable stress value of 20,000 PSI for SS316, 10,000psi for Brass, and 20,000 PSI for Carbon Steel as per ASME B31.3 Process Piping Code.
- To determine the working pressure of ASME B31.1 Power Piping Code, multiply the ASME B31.3 rating by 0.94. Brass pressure ratings remain the same.
Additional Information
Size (inches): |
.500 (1/2") |
Size (inches): |
.250 (1/4") |
Material Type: |
316 Stainless Steel |
Product Type: |
Reducing Adapter |
Category Type: |
High Pressure Fittings |
Category Type: |
Instrumentation Fittings |
End Connection: |
MNPT x FNPT |
Additional: |
From Import |
Pressure Rating (PSI): |
4700 |
