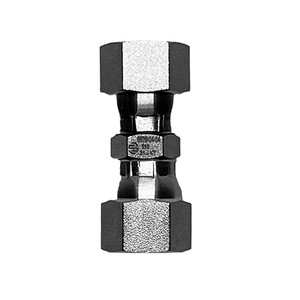

3/4 in. FJIC SWVL x 3/4 in. FJIC SWVL - Straight Connector - Female JIC Threaded Swivel - 316 Stainless Steel Adapter

• The hydraulic tube fittings represented by Stainless Adapters Inc. conform to the performance requirements specified in SAE J514, SAE J518, SAE J1453, SAE J1926/ISO 11926 and related standards.
• The working pressure ratings listed below are based on a 4:1 design factor for minimum burst.
• As specified in SAE J514, these are dynamic pressure ratings and the fittings are capable of passing a cyclic endurance (im- pulse) test for one million cycles at 133 % of the corresponding working pressure.
• The rated working pressure for any fitting is based on the lowest pressure rated fitting end.
• For example, a fitting may include one -4 (1/4”) male 37-degree tube end and one -6 (3/8”) male pipe end.
• From the technical tables below, the rated working pressure for the -4 male 37-degree tube end is 34.5 MPa (5,000 psi) and the rated working pressure of the -6 (3/8”) male pipe end is 21 MPa (3,000 psi).
• The rated working pressure of the fining would be 21 MPa (3,000 psi).
• For proper performance, the design of any hydraulic system should take into consideration the rated working pressures for each of the components of the system, including standard ratings for hose and tubing com- ponents and assemblies.
• For any application, testing should be performed to assure safe and satisfactory performance.


Technical Data & Pressure Ratings

Part Info, Threads & Sizing
