BFO Select

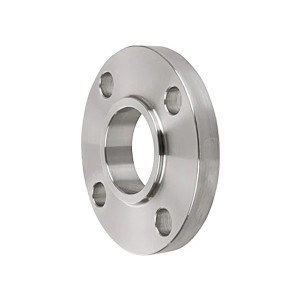

3 in. Pipe Size - Lap Joint Flange - 8 Bolt Holes - 300# ANSI 304/304L Stainless Steel Forged Flange
- SKU:
- 5518-K
- Availability:
- Available
- Weight:
- 13.00 LBS
Description
300## ANSI LAP JOINT FLANGES - STAINLESS STEEL
Lap joint flanges consist of two parts: A stub end (welded to the pipe). A loose flange ring (that slides over the stub end). They do not have a raised face. The pipe is welded to the stub end allowing the lap joint flange to rotate freely around the stub end to align bolt holes during installation, which is especially useful in tight spaces or complex assemblies. Type 304 stainless steel, a chromium-nickel material, resists corrosion caused by water, heat, saltwater, acids, minerals, and peaty soils. Type 316 stainless steel has a higher nickel content than 304 stainless, plus molybdenum, for even greater corrosion resistance. Class 150 is for use with low pressure (100-299 PSI) pipe (schedule 40) and fittings (150#).
- Forged stainless steel material conforms to ASME A182
- Forged stainless steel flange dimensions conform to ASME B16.5
- 304/304L & 316/316L Stainless Steel Available
Lap joint flanges do not have a raised face. These flanges are most commonly used with stub end fittings and slide directly over the pipe. The pipe is welded to the stub end allowing the lap joint flange to rotate freely around the stub end, eliminating issues with bolt-hole alignment.
Class 300 flanges connect with medium-pressure (300-999 psi) pipe and fittings.
MTR - Yes
From Import (S. Korea, Thailand, Vietnam, Subject to Change)
PDF/ Specs / BrochureAdditional Information
Size (inches): |
3.00 (3") |
Material Type: |
304/304L Stainless Steel |
Product Type: |
Lap Joint Flange |
Category Type: |
Pipe Flanges |
Pressure Rating (psi): |
300 |
Number of Bolt Holes: |
8 |
Specifications or Standards: |
ANSI |
Specifications or Standards: |
ASME A182 |
Specifications or Standards: |
ASME B16.5 |
Weight (lbs): |
13.00 |
Additional: |
From Import |
Industry Crossover: |
4381003650 |
