BFO Select

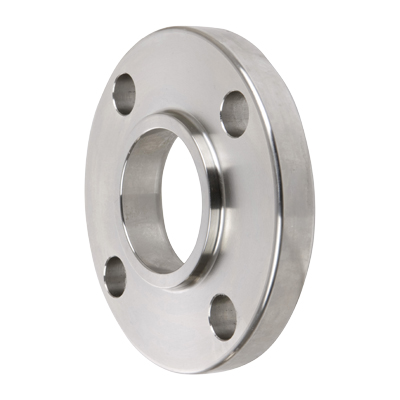

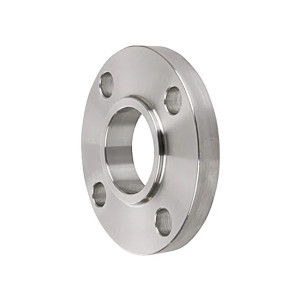

12 in. Slip-On Flange - 300# ANSI Raised Face (RF) 304/304L Stainless Steel Pipe Flange
(No reviews yet)
Write a Review
- SKU:
- 5513-L12
- Availability:
- Request a Quote
- Weight:
- 115.00 LBS
Description
150#, 300# & 600# Slip On Flange Dimensions & Drawing
- Raised Face
- Forged stainless steel material conforms to ASME A182
- Forged stainless steel flange dimensions conform to ASME B16.5
- NPT Threads conform to ASME B1.20.1
- 304/304L & 316/316L Stainless Steel Available
- Up to 12" Listed - Contact us if you require larger sizes
- Stainless Steel Flanges, Blind 150# ANSI for Pipe Fittings & Piping Systems
Additional Information
Size (inches): |
12.00 (12") |
Material Type: |
304/304L Stainless Steel |
Product Type: |
Slip On Flange |
Category Type: |
Pipe Flanges |
Pressure Rating (psi): |
300 |
Number of Bolt Holes: |
16 |
Style: |
Raised Face |
Specifications or Standards: |
ANSI |
Specifications or Standards: |
ASME B16.5 |
Weight (lbs): |
115 |
Additional: |
From Import |
