BFO Select

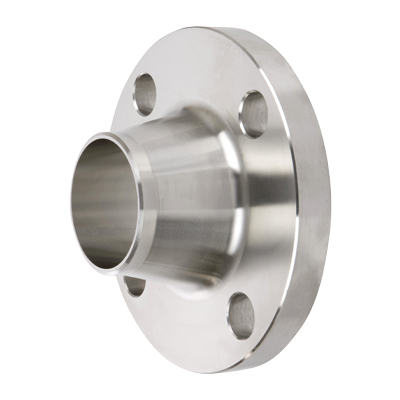

8 in. Weld Neck Flange - Schedule 10 - 150# ANSI Raised Face (RF) 304/304L Stainless Steel Pipe Flange
(No reviews yet)
Write a Review
- SKU:
- 5506-L8
- Availability:
- Request a Quote
- Weight:
- 39.00 LBS
Description
Weld Neck Flanges - Dimensions & Drawing
- Raised Face
- Forged stainless steel material conforms to ASME A182
- Forged stainless steel flange dimensions conform to ASME B16.5
- NPT Threads conform to ASME B1.20.1
- 304/304L & 316/316L Stainless Steel Available
- Up to 12" Listed - Contact us if you require larger sizes
- Stainless Steel Flanges for Pipe Fittings & Piping Systems
Additional Information
Size (inches): |
8.00 (8") |
Material Type: |
304/304L Stainless Steel |
Schedule: |
10 |
Product Type: |
Weld Neck Flange |
Category Type: |
Pipe Flanges |
Pressure Rating (psi): |
150 |
Number of Bolt Holes: |
8 |
Style: |
Raised Face |
Specifications or Standards: |
ANSI |
Specifications or Standards: |
ASME B16.5 |
Weight (lbs): |
39 |
Additional: |
From Import |
