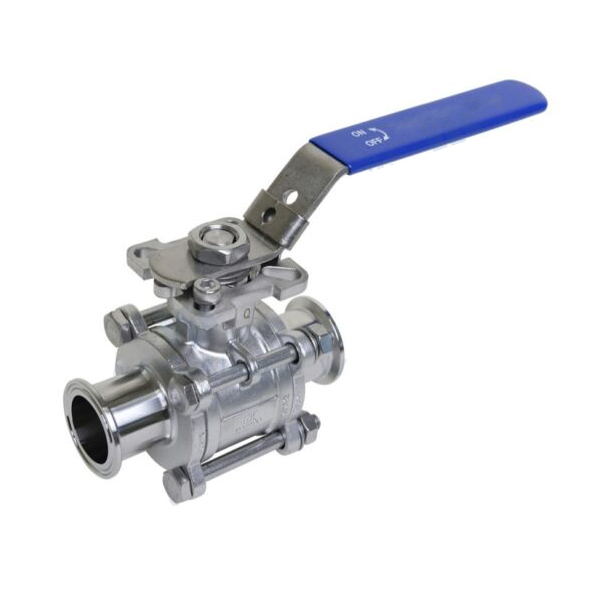

2-1/2 in. Clamp Ends - 3PC Encapsulated 2-Way Ball Valve - PTFE - 316L Stainless Steel Sanitary Ball Valve (BVETC)

Clamp End x Clamp End- 3PC Encapsulated 2-Way Ball Valve - PTFE - 316L Stainless Steel Sanitary Ball Valve (BVETC)

• Material: CF3M (316L) stainless steel
• ID polish is ≤ 32Ra
• Blow-out proof stem
• Full port design offers lower pressure drop & less turbulent flow
• Precision stainless steel solid ball reduces torque and friction loss while extending seat life
• All ball valves utilize silicone free lubricant
• ISO 5211 mounting pad for direct mount automation
• Pressure Rating (Body):
  • 1/2"~ 2" 1000PSI WOG
  • 2-1/2"~ 4" 800PSI WOG
  • 6" 700PSI WOG
• Vacuum service to 29 inches Hg
• Live-loaded stem packing
• Lockable handle can prevent accidental opening or closing
• 100% tested
• Valve body surface is electropolished to improve corrosion resistance
• Fully encapsulated construction
• Stocked with clamps ends & extended buttweld ends
• Other end connections available upon requesT
• PTFE seats and gaskets are compliant with FDA specifications
