BFO Select

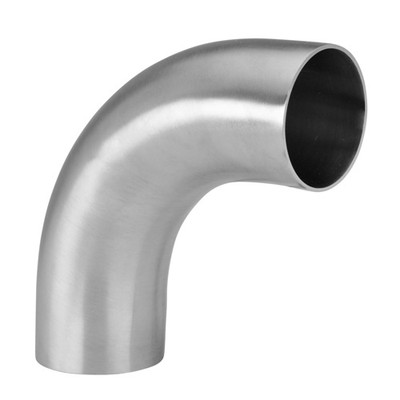

6 in. Polished 90° Weld Elbow with Tangents (L2S) 316L Stainless Steel Sanitary Butt Weld Fitting (3-A)
(No reviews yet)
Write a Review
- SKU:
- BF6L2S-6-7
- Availability:
- Available
- Weight:
- 4.68 LBS
Description
L2S Weld x Weld 90° Elbows with Tangents - Polished
L2S 90 degree elbows are 304 or 316L stainless steel with a polished finish (No. 7) featuring a butt weld x butt weld connection. This 90 degree elbow is used to change flow direction in many applications for the semiconductor, cosmetics, food, dairy and beverage industries.
- Available in 304 and 316L Stainless Steel
- Polished Finished No. 7 - 150 grit outside/inside diameter (ID/OD) only
- 3-A Sanitary Certified
Product Data Table:
| Tube O.D. | A | R | 304 Stainless Steel Part Number | 316L Stainless Steel Part Number |
| 1/2" | 3.000 | 1.125 | -- | BF6L2S-50-7 |
| 3/4" | 3.000 | 1.125 | -- | BF6L2S-75-7 |
| 1" | 2.062 | 1.500 | BF4L2S-1-7 | BF6L2S-1-7 |
| 1-1/2" | 2.937 | 2.250 | BF4L2S-15-7 | BF6L2S-15-7 |
| 2" | 4.062 | 3.000 | BF4L2S-2-7 | BF6L2S-2-7 |
| 2-1/2" | 5.187 | 3.750 | BF4L2S-25-7 | BF6L2S-25-7 |
| 3" | 6.312 | 4.500 | BF4L2S-3-7 | BF6L2S-3-7 |
| 4" | 8.312 | 6.000 | BF4L2S-4-7 | BF6L2S-4-7 |
| 6" | 12.460 | 9.000 | BF4L2S-6-7 | BF6L2S-6-7 |
Part Number Cross Reference:
| Wayland | Alfa Laval | Dixon | VNE | Topline | Sanitary Solutions |
| WL2S | L2S | B2S | E2S | L2S | SS2S |
Additional Information
Size (inches): |
6.00 (6") |
Material Type: |
316L Stainless Steel |
Product Type: |
90° Elbow |
Category Type: |
Sanitary Butt Weld Fittings |
Style: |
L2S |
Finish: |
No. 7 |
Finish: |
Polished |
Specifications or Standards: |
3-A |
Weight (lbs): |
4.68 |
Additional: |
From Import |
