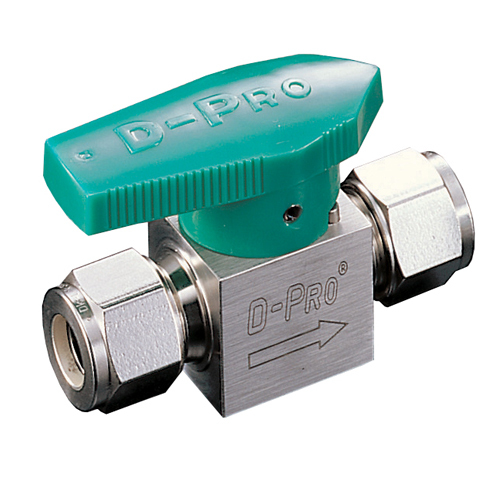

Series V23 Tube OD Plug Valves
V23 Plug Valve - 316 Stainless Steel - Tube OD x Tube OD Compression Valves
- Quarter-turn operation
- Unique forward flow throttling
- Low torque operation
- Unidirectional flow
- Pressure Rating up to 3,000 psig (206 bar)
- Temperature Rating: -10 to 400 °F (-23 to 204 °C)
- Every V23 series plug valve is factory tested for shutoff at 600psig (41.3 bar).
-
DescriptionSKUPrice
-
1/4 in. Tube OD x 1/4 in. Tube OD - 3,000 PSIG 316 Stainless Steel Series V23 Compression Plug Valve
V23A-D-4T-S$74.38 -
3/8 in. Tube OD x 3/8 in. Tube OD - 2,000 PSIG 316 Stainless Steel Series V23 Compression Plug Valve
V23B-D-6T-S$124.63 -
V23B-D-8T-S$133.01
