BFO Select

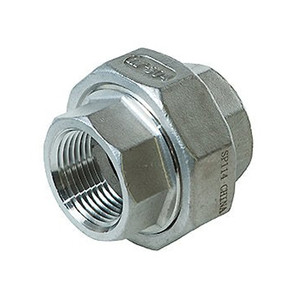

1/8 in. NPT Threaded - Union - 304 Stainless Steel 150# MSS SP-114 Heavy Pattern Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- BF4381064460
- Availability:
- Available
- Weight:
- 0.17 LBS
Description
Specifications:
MSS SP-114 pipe fittings offer a heavy duty, thick wall pattern provides additional protection against erosion due to extremely high flow rates for increased system life. The tight dimensional tolerances in lay length make the MSS SP-114 pattern fitting the number one choice for industrial and factory installations. They are commonly used in commercial and industrial piping systems in chemical plants, pulp & paper, petroleum, food & beverage, sanitary, steam systems, and general industrial processes that are subject to various stressors.
- Stainless steel MSS-SP114 heavy pattern fittings are investment castings.
- Available in a full range from 1/8” to 4” in both 304 and 316 grades of stainless steel.
- All fittings are threaded to NPT standard in compliance to ASME B1.20.
- Castings are made in accordance to ASTM 351
- Heat treated and tested in accordance to ASTM A262
- For use with Pipe Schedule 40
Applications:
Air; Natural Gas; Non-Potable Water; Oil; Potable Water; Steam
Class:
150
Maximum Steam Pressure / Max Operating Pressure:
Max Steam Pressure: 150 psi @ 350° F
Max Pressure: 300 psi @ 72° F
Max Pressure: 300 psi @ 72° F
Gender
Female NPT x Female NPT Threaded
Unions - Straight Connector
Unions - Straight Connector
Standards Met:
ASME B1.20.1; ASTM A351; MSS SP-114
MTR / COC:
Available Upon Request
Schedule B / HTS Code / COO:
730729.0000
Country of Origin Varies (subject to change)
Country of Origin Varies (subject to change)
PDF/ Specs / BrochureAdditional:
* Product and Category images provided are a generic image and not size specific
Warranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Dimensions / Images: - Dimensions provided are for reference only and subject to change.
- If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.
- All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Shipping Policy: View Shipping Policy Here
Additional Information
Size (inches): |
.125 (1/8") |
Material Type: |
304 Stainless Steel |
Product Type: |
Union |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
Specifications or Standards: |
MSS SP-114 |
End Connection: |
NPT |
Weight (lbs): |
0.1742 |
Additional: |
From Import |
Industry Crossover: |
SP114-SS304-69001, 4381064460 |
